LSZH Jacket self-supporting drop wire cable FTTH outdoor 2 core fiber optic cable
Description
The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wires are placed at the two sides. A steel
wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.
Characteristics:

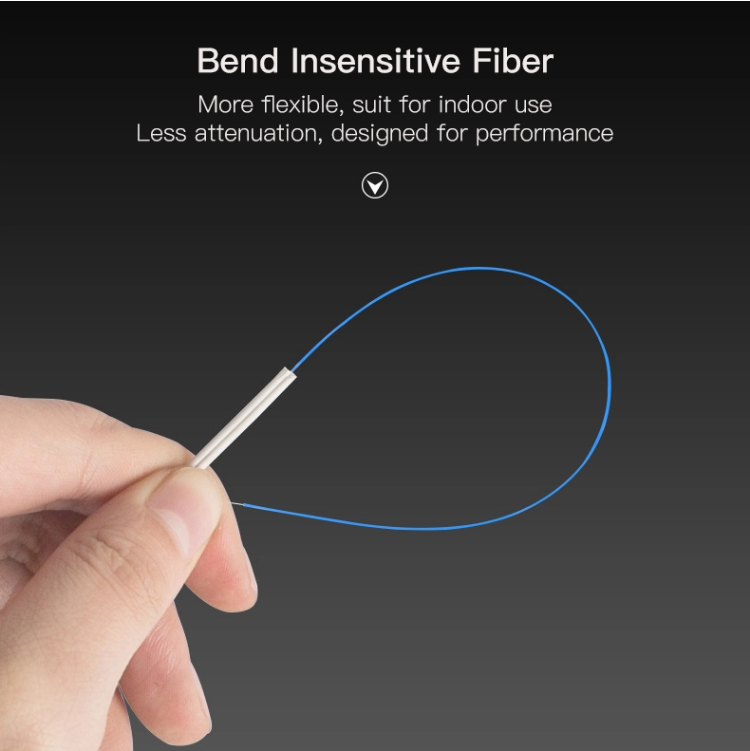

1. Special low-bend-sensitivity fiber provides high bandwidth and excellent
communication transmission property;
2. Simple structure, light weight and high practicability;
3. Novel flute design, easily strip and splice, simplify the installation and maintenance;
4. Low smoke, zero halogen and flame retardant sheath.
FTTH Fiber Parameters
| No. | Items | Unit | Specification |
| G.657A1 |
| 1 | Mode Field Diameter | 1310nm | | 9.0±0.4 |
| 1550nm | | 10.1±0.5 |
| 2 | Cladding Diameter | μm | 124.8±0.7 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 |
| 10 | Macro-Bending Loss | 1turn×10mm radius @1550nm | | |
| 1turn×10mm radius @1625nm | dB | ≤1.5 |
Mechanical and Environmental Characteristics
| Items | Unit | Specifications |
| Tension(Long Term) | N | 100 |
| Tension(Short Term) | N | 200 |
| Crush(Long Term) | N/10cm | 1000 |
| Crush(Short Term) | N/10cm | 2200 |
| Min. Bend Radius(Dynamic) | mm | 30 |
| Min. Bend Radius(Static) | mm | 15 |
| Installation Temperature | ℃ | -20~+60 |
| Operating Temperature | ℃ | -20~+60 |
| Storage Temperature | ℃ | -20~+60 |
Packaging Details
1-2KM per roll. Packed by wooden drum. Other packing available according to client`s Request.
Photo Show:

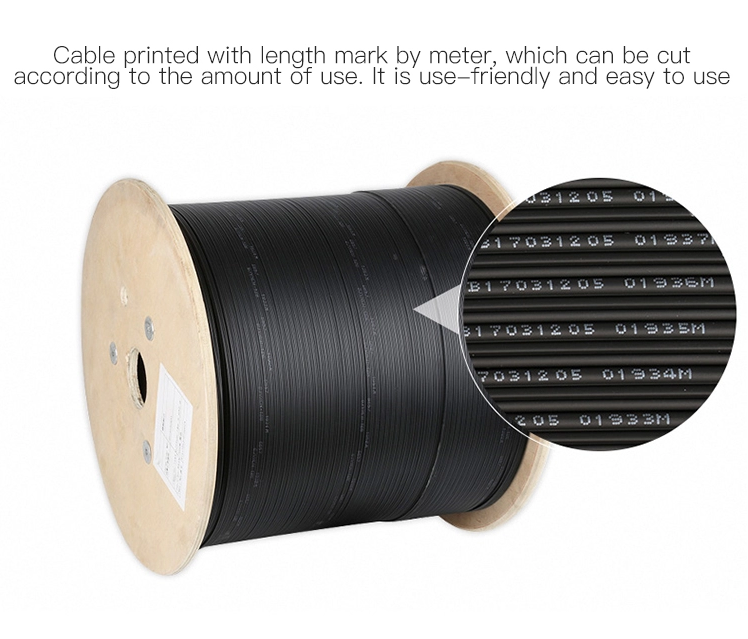

Sheath mark:
The following printing(white hot foil indentation)is applied at 1meter intervals.
a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 14 years;
d. Length marking in meters.
Port:
Shenzhen/GuangZhou/Hongkong
Lead Time:
| Quantity(KM) | 1-50 | 50-100 | 100-300 | ≥300 |
| Est.Time(Days) | 7 | 7-10 | 7-15 | To be Negotiated! |
Note
The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.
